HARDWARE FEATURES
Plug Type: UK
Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)

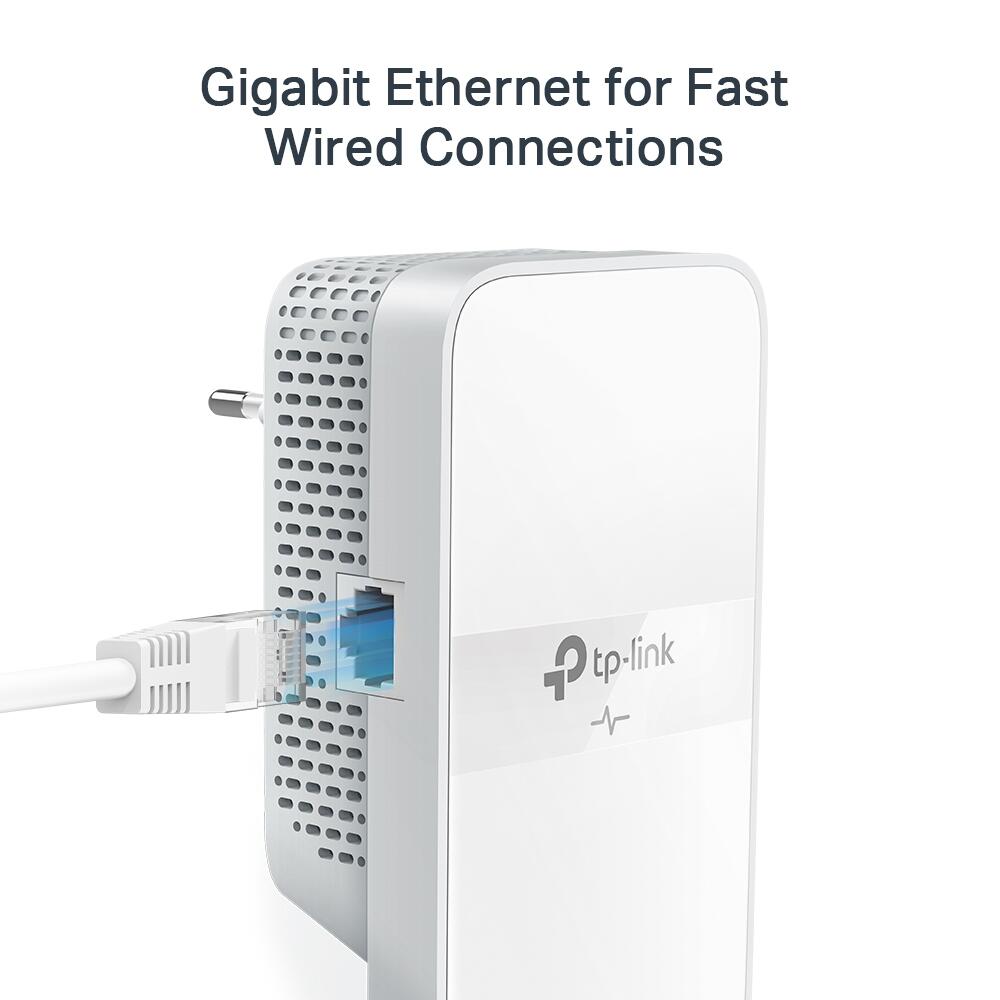

Interface: TL-WPA7617-1 Ethernet Port, TL-PA7017P-1 Ethernet Port

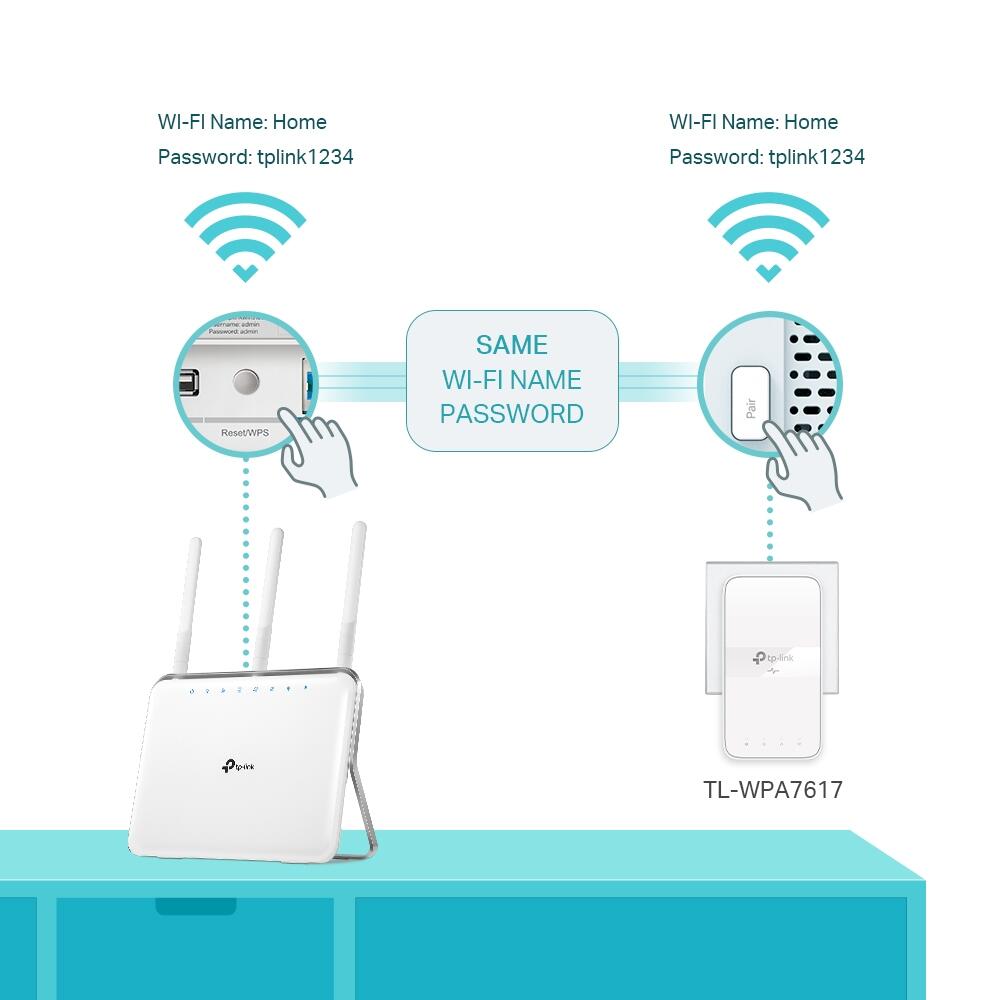

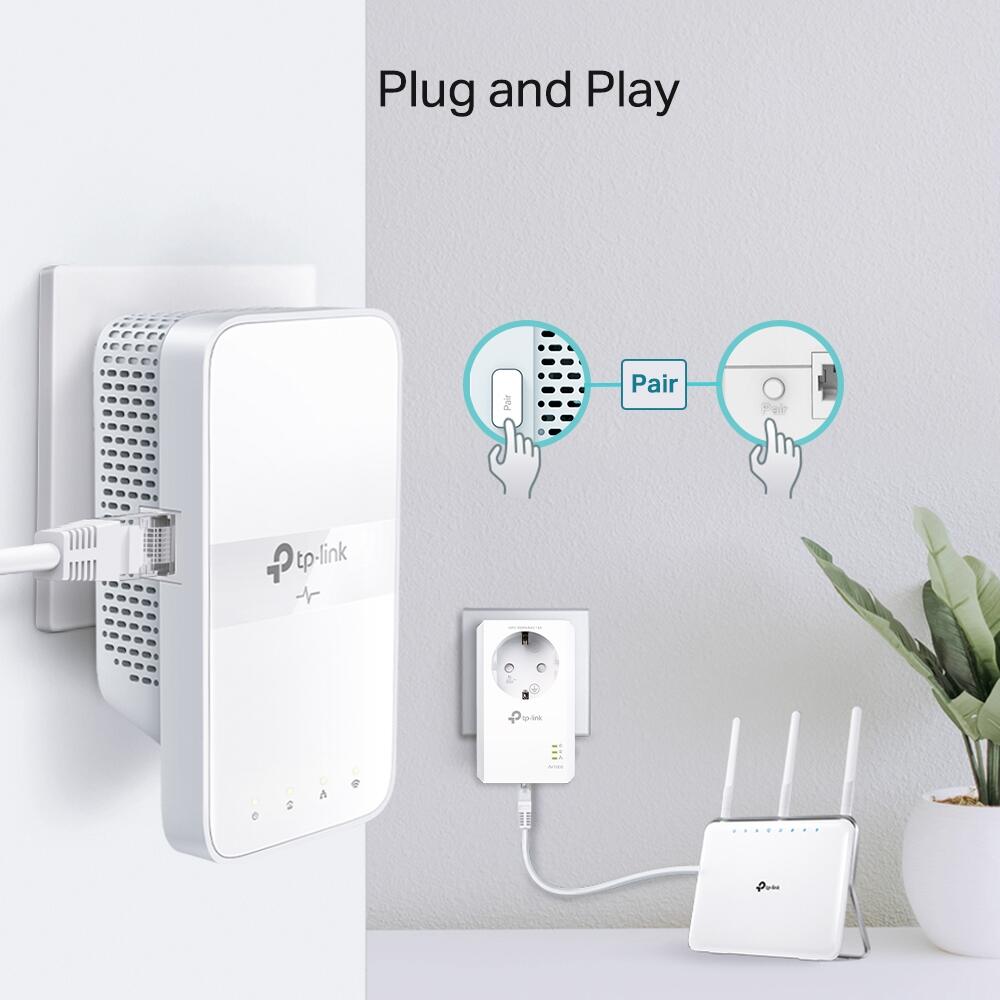

Button: Pair, Reset, Wi-Fi Clone, LED On/Off
Power Consumption: TL-WPA7617-Maximum: 11W, Typical: 6.5W, TL-PA7017P-Maximum: 2.9W, Typical: 2.6W
LED Indicator: Power, Powerline, Ethernet, Wi-Fi
Dimensions ( W x D x H ): TL-WPA7617: 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm), TL-PA7017P: 2.3 × 1.7 × 3.7 in. (58 × 42 × 95 mm)
Range: Up to 300 meters/1000 feet over existing electrical wiring
Compatibility: Compatible with all HomePlug AV & AV2 standard powerline adapters
Transmission Speeds: Powerline: Up to 1000 Mbps, Ethernet: 10/100/1000 Mbps

WIRELESS FEATURES
Wireless Speeds: Up to 1200 Mbps
Wireless Security: Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions

SOFTWARE FEATURES
Management tpPLC: Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com.
Modulation Technology OFDM (PLC)
Encryption Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
