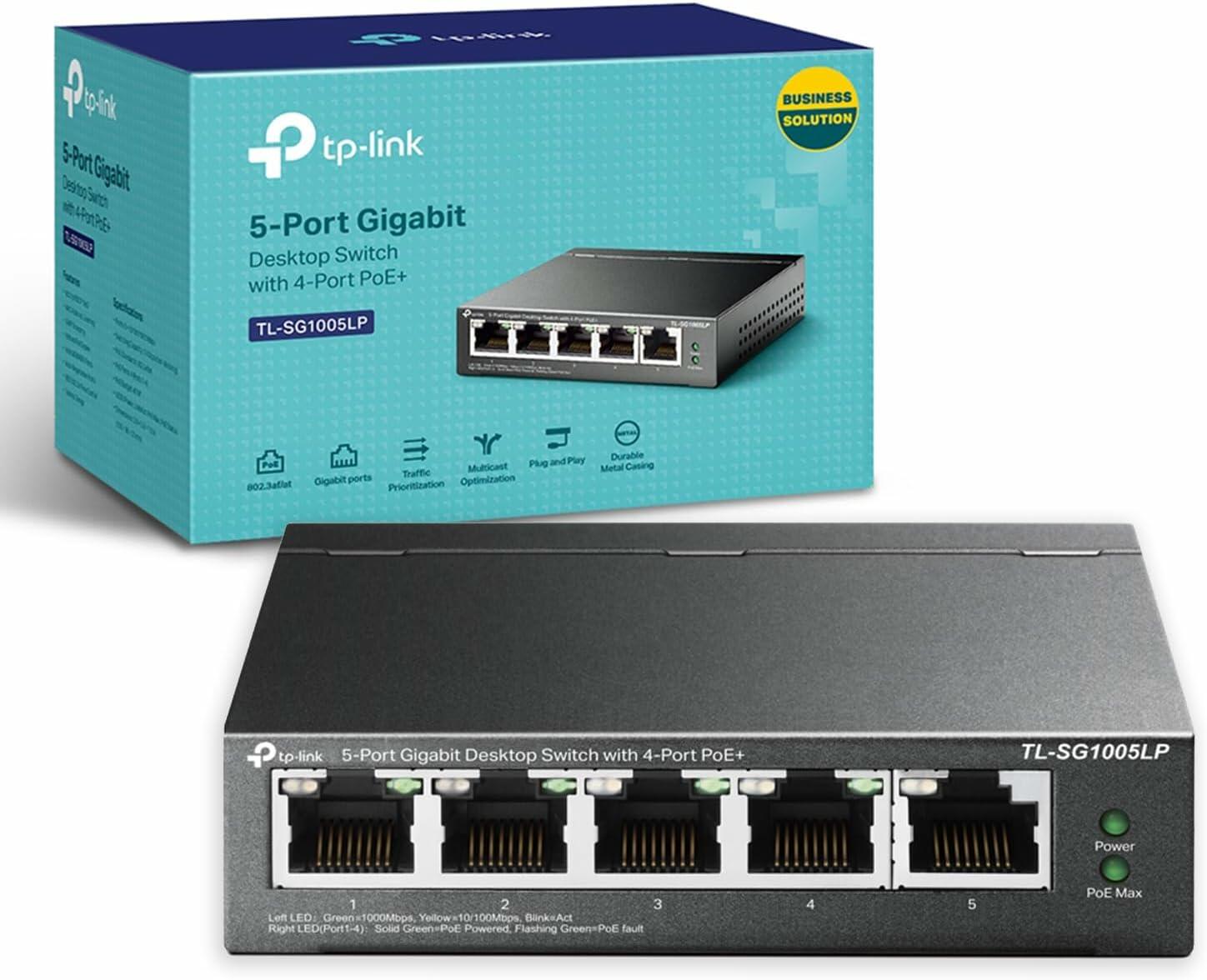

TP-LINK SWITCH 5PORTS GIGABIT 4PORTS PoE/ 1PORT GIGABIT LAN TL-SG1005LP

ACC-NIN-B0CLVL3MPM
EL-NIN-B0CZ3Z2YHX

HARDWARE FEATURES
Interface
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless

External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)

Packet Forwarding Rate: 7.44 Mpps

PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W

Mac Address Table: 2K

Jumbo Frame: 16 KB

Switching Capacity: 10 Gbps

Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption
• 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)

Max Heat Dissipation
• 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES
Advanced Features
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method: Store-And-Forward

OTHERS
Certification: FCC, CE, RoHS
Package Contents
• TL-SG1005LP
• Power Adapter
• Installation Guide

Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
