HARDWARE FEATURES

Interface:

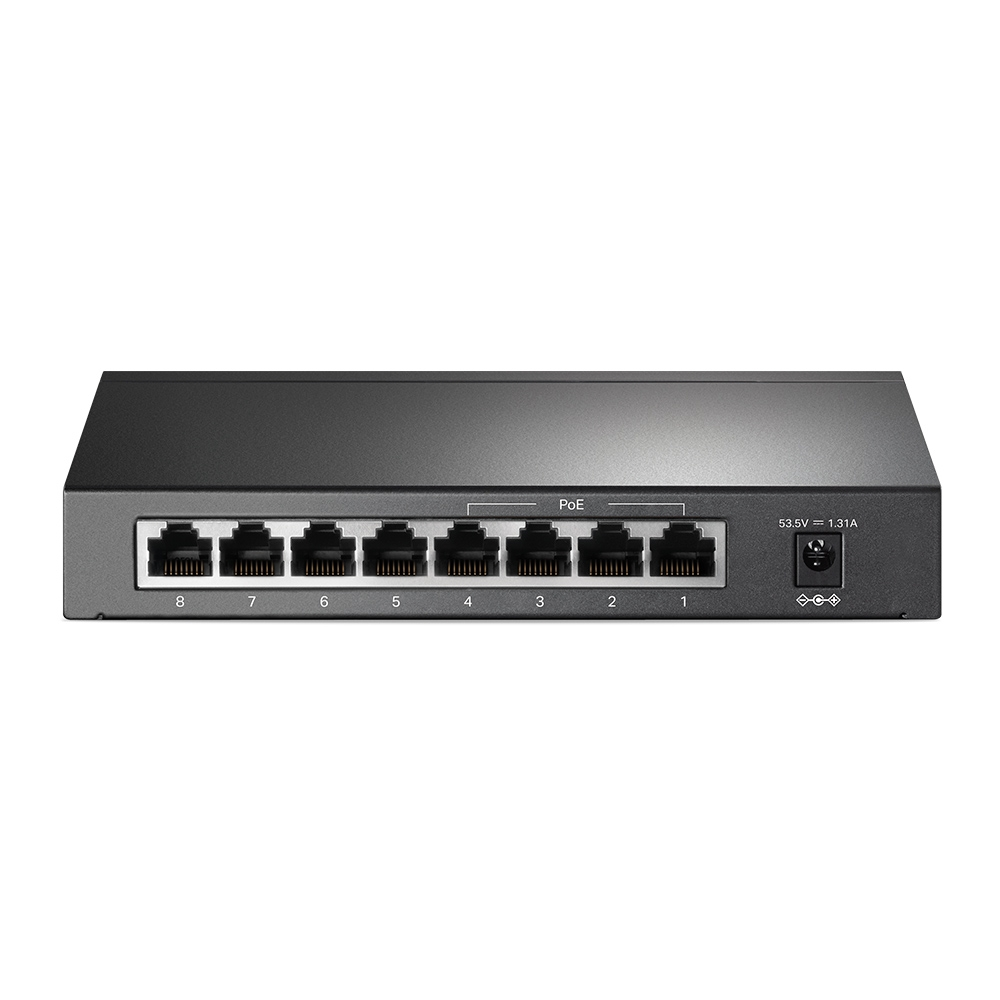

8× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX

Network Media:
-10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-EIA/TIA-568 100Ω STP (maximum 100m)
-100BASE-TX: UTP category 5, 5e cable (maximum 100m)
-EIA/TIA-568 100Ω STP (maximum 100m)
-1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
-EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity:
Fanless

Physical Security Lock:
Yes

External Power Supply:
External power adapter (Output: 54VDC / 1.3A)

Packet Forwarding Rate:
11.904 Mpps

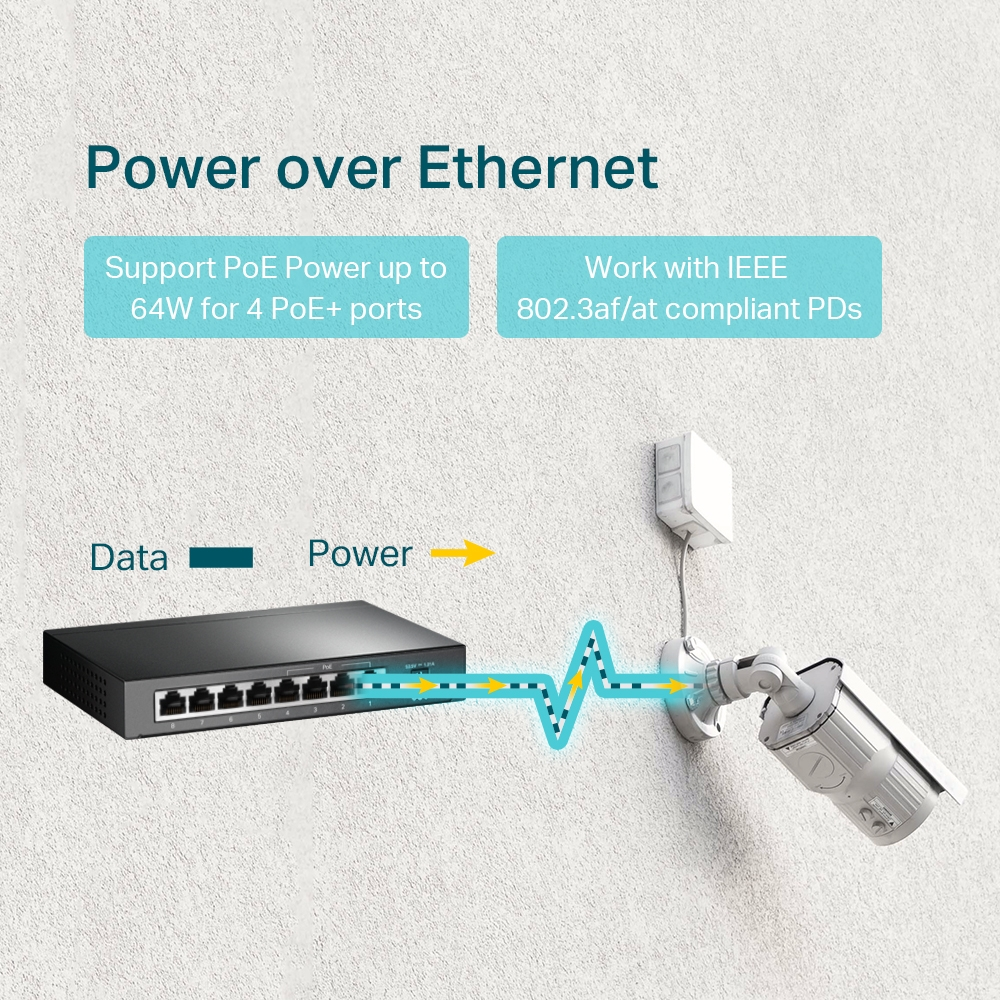

PoE Ports (RJ45):
-Standard: 802.3 af/at compliant
-PoE Ports: ports 1–4

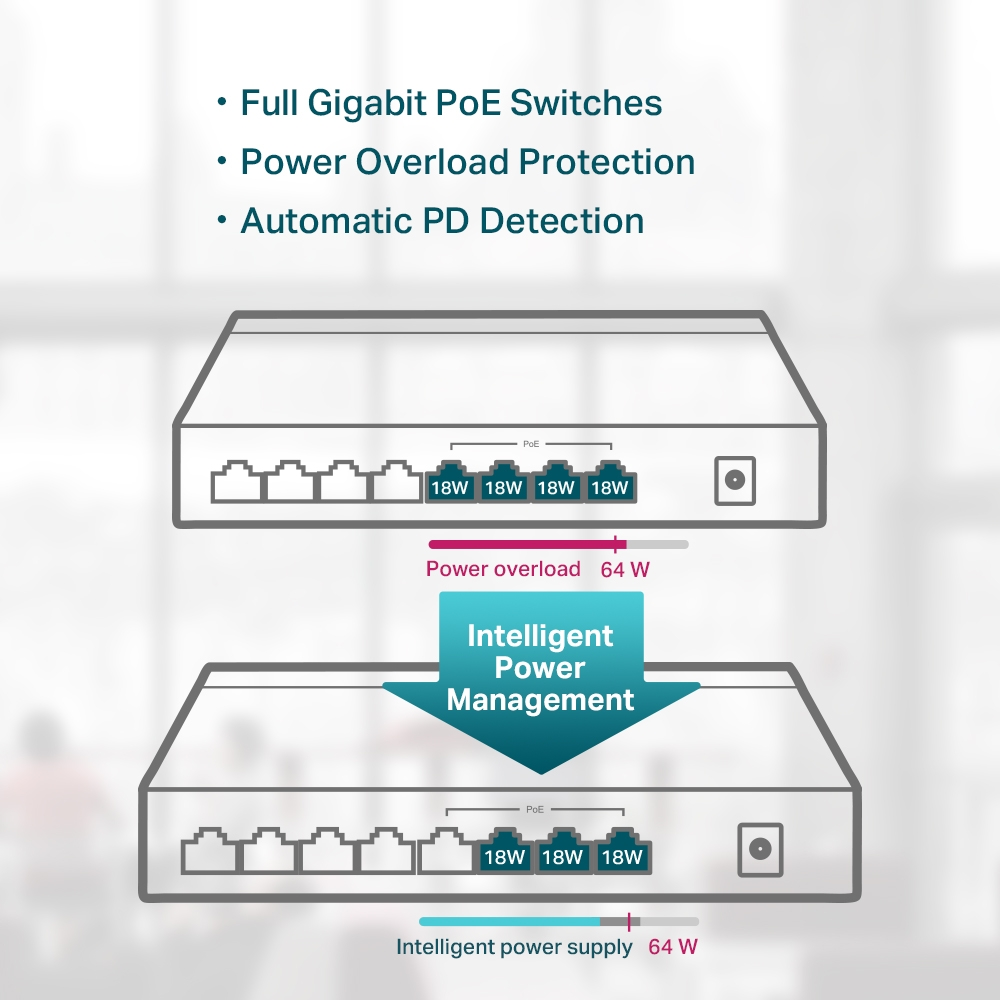

-Power budget for all PoE ports: 64 W

Mac Address Table:
4K

Jumbo Frame:
16 KB

Switching Capacity:
16 Gbps

Dimensions ( W x D x H ):
6.7 × 3.9 × 1.1 in (171×98×27 mm)

Max Power Consumption
-5.4 W (with no PD connected)
-75 W (with 64W PD connected)
Max Heat Dissipation
-18.4 BTU/h (with no PD connected)
-225.8 BTU/h (with 64 W PD connected)

SOFTWARE FEATURES
Transmission Method:
Store-And-Forward

Advanced Functions:
• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
