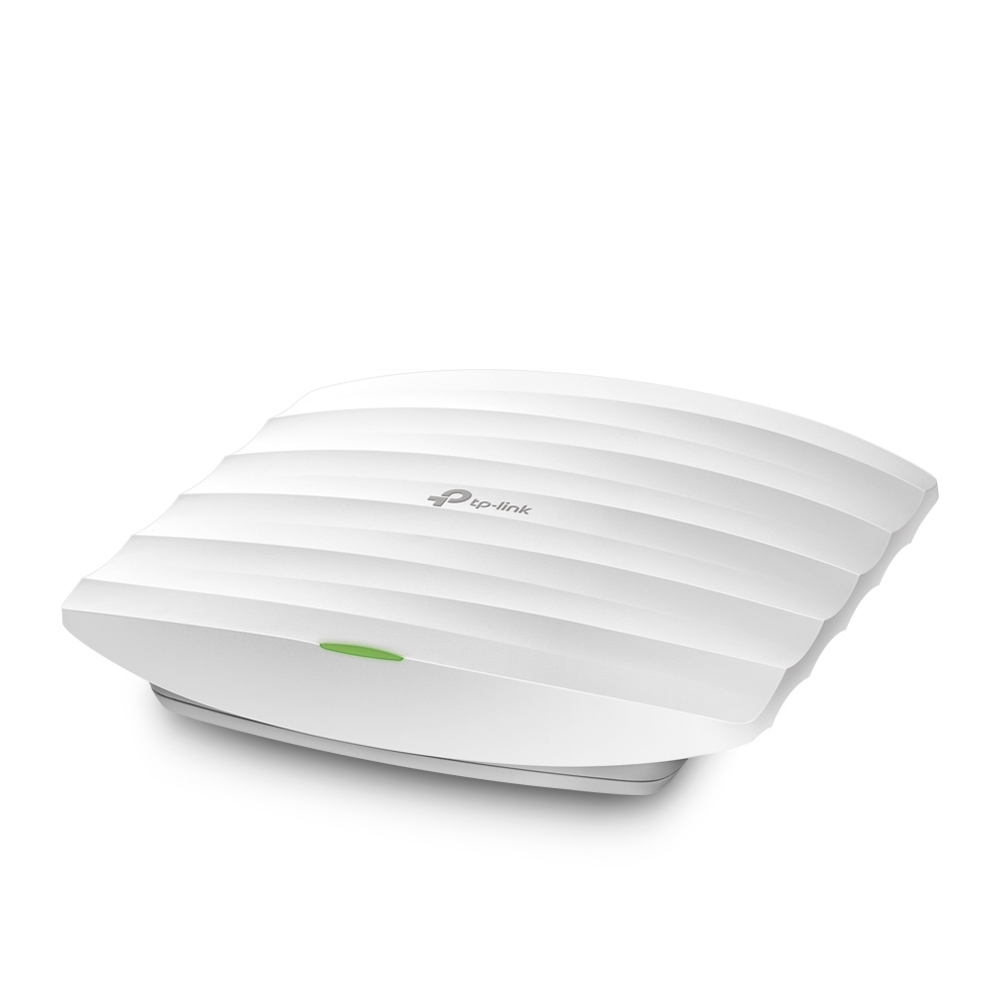

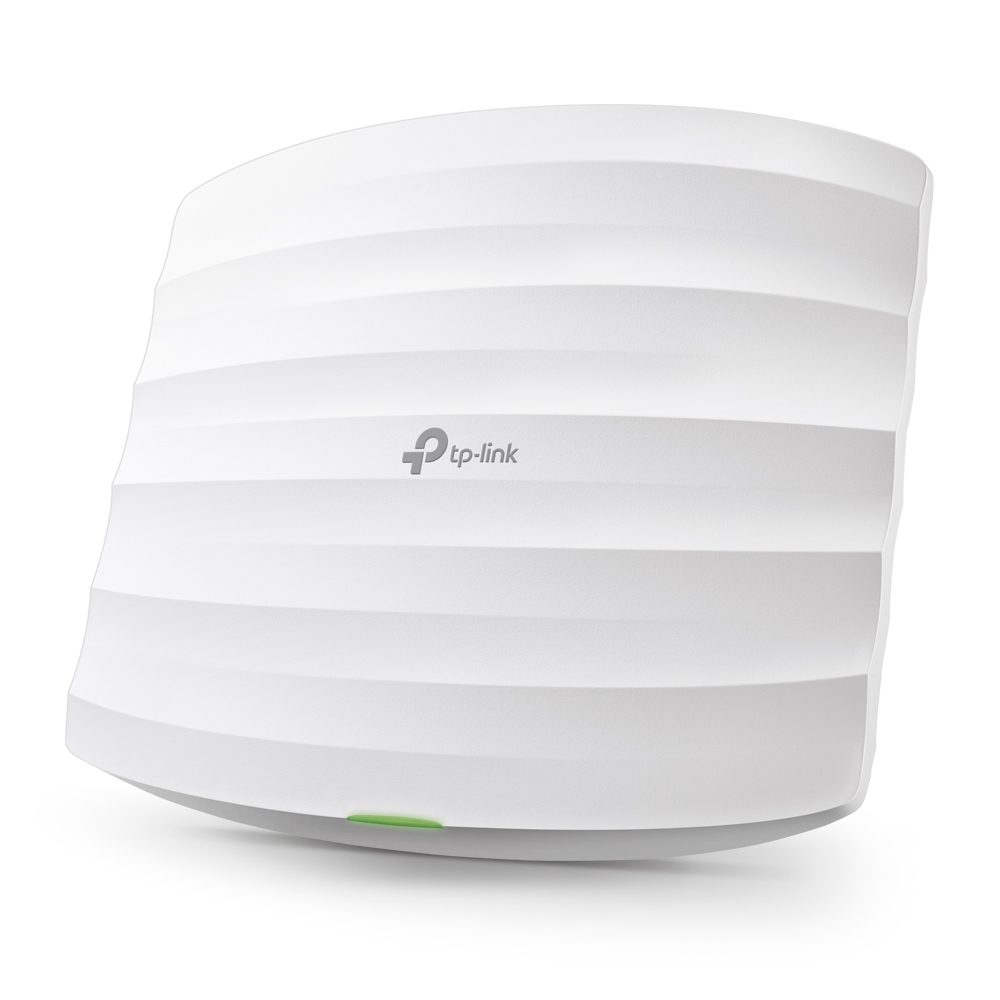

TP-LINK EAP225 CEILING MOUNT ACCESS POINClick the image to enlarge
Code NET-TPL-EAP225
€0.00
€95.00
Price in shop: €99.99
Save
Earn 0 reward points with this product.
  • Description

    DESCRIPTION:

    • Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds
    • EAP Controller Software lets administrators easily manage hundreds of EAPs
    • Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
    • Captive portal provides a convenient method for guest authentication
    • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
    • MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections
    • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
    • Supports management VLAN for an enhanced network management
    • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
    HARDWARE FEATURES

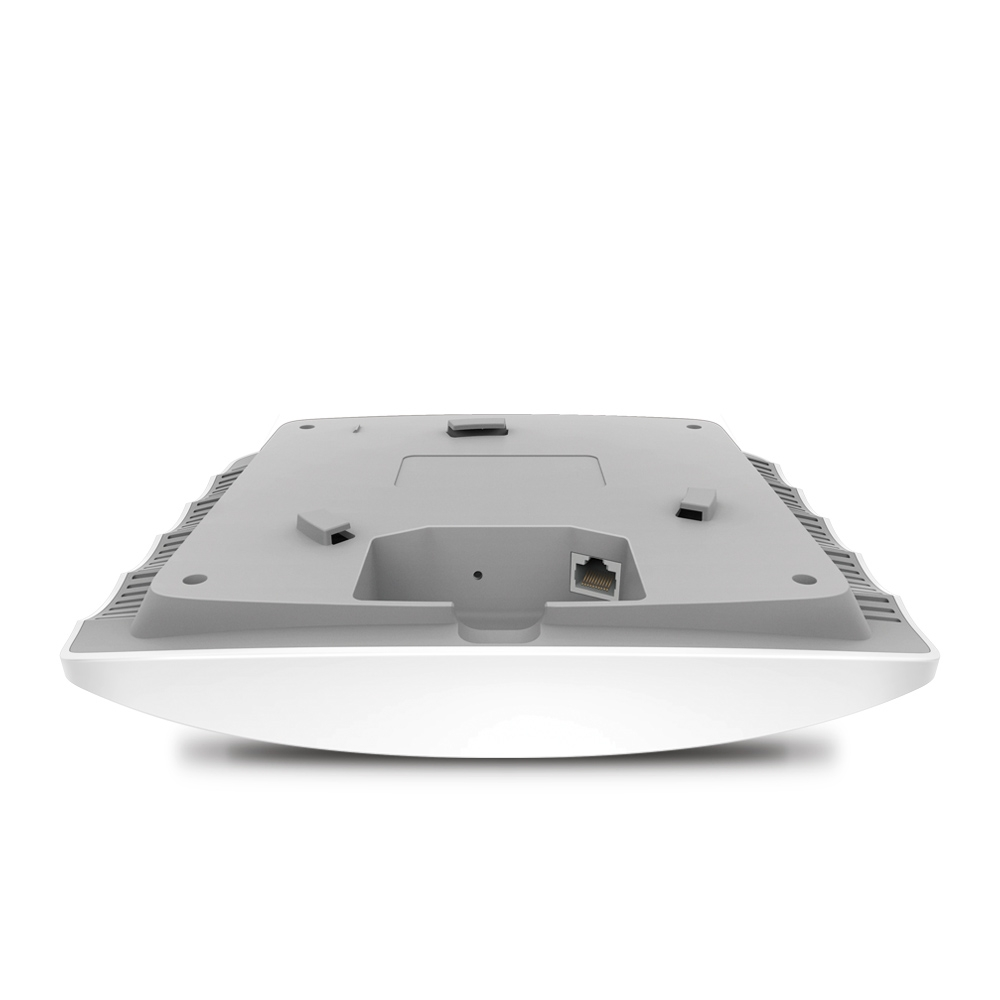

    InterfaceGigabit Ethernet (RJ-45) Port x 1
    (Support IEEE802.3af or passive PoE)
    Physical Security LockYes
    ButtonReset
    Power Supply802.3af/at PoE PoE or passive PoE
    Power Consumption12.6W
    Dimensions8.1 × 7.1 × 1.5 in
    (206 × 182 × 37 mm)
    Antenna Type3 Internal Omni
    2.4GHz: 4dBi
    5GHz: 5dBi
    MountingCeiling mount or wall mount (mounting kit included)
    WIRELESS FEATURES
    Wireless StandardsIEEE 802.11ac/n/g/b/a
    Frequency2.4GHz and 5GHz
    Signal Rate5GHz:Up to 867Mbps*
    2.4GHz:Up to 450Mbps*
    Wireless FunctionsMultiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    Seamless Roaming
    Band Steering
    Load Balance
    MU-MIMO*
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client
    Wireless SecurityCaptive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    Transmission Power≤24dBm(2.4GHz)
    ≤22dBm(5GHz)
    MANAGEMENT
    Omada AppYes
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Email AlertsYes
    LED ON/OFF ControlYes
    Management MAC Access ControlYes
    SNMPv1,v2c
    System Logging Local/Remote SyslogLocal/Remote Syslog
    TelnetYes
    SSHYes
    Web-based ManagementHTTP/HTTPS
    L3 ManagementYes
    Multi-site ManagementYes
    Management VLANYes
    OTHERS
    CertificationFCC, RoHS
    Package ContentsAC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
    Passive PoE Adapter
    Power Cord
    Mounting Kit
    Installation Guide
    EnvironmentOperating Temperature: 0?~40? (32?~104?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
