TP-LINK

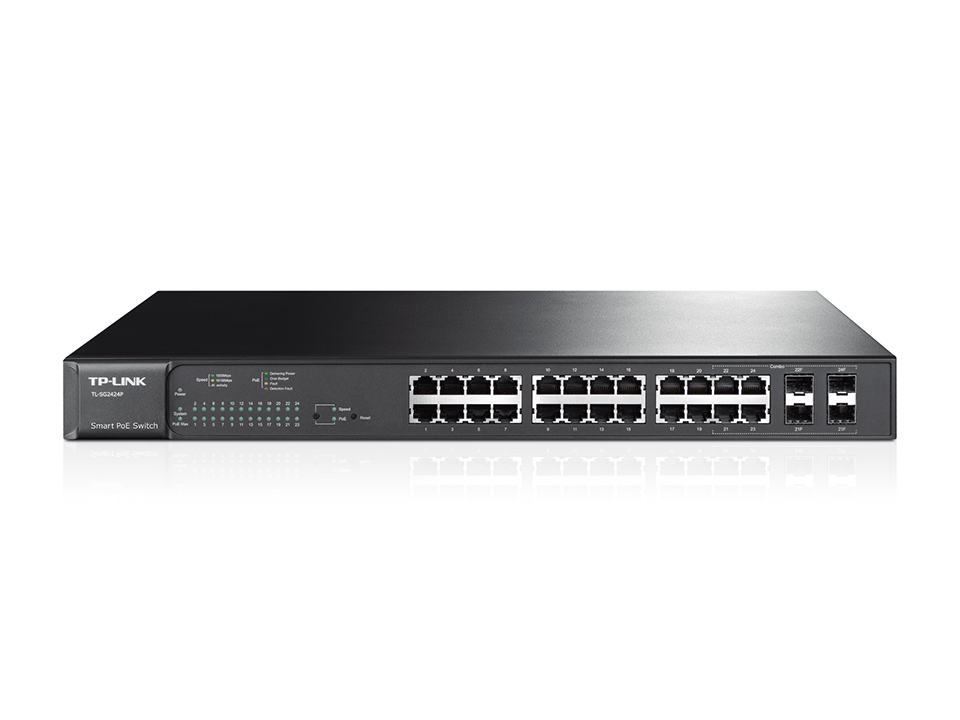

TP-LINK 24-PORT GIGABIT POE SWITCH

TP-LINK

TP-LINK 24-PORT GIGABIT POE SWITCH

DESCRIPTION:

  • Supports 24 802.3at/af-compliant POE+ ports with a total power supply of 180W
  • Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features



HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1p
Interface24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Combo 100/1000Mbps SFP Slots
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity3
Power Supply100~240VAC, 50/60Hz
Power ConsumptionMaximum (PoE on): 216W (220V/50Hz)
Maximum (PoE off): 36W (220V/50Hz)
PoE+ Ports(RJ45)Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 180W
Dimensions ( W x D x H )17.32*13*1.73 in.(440*330*44 mm)
PERFORMANCE
Bandwidth/Backplane48Gbps
Packet Forwarding Rate35.7Mpps
MAC Address Table8K
Jumbo Frame10240 Bytes
SOFTWARE FEATURES
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 FeaturesIGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
LLDP, LLDP-Med
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLANSupports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control ListL2~L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports
Time Range Based
SecuritySSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
ManagementWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Filtering
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
OTHERS
CertificationCE, FCC, RoHS
Package ContentsSwitch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
