Connector(s)

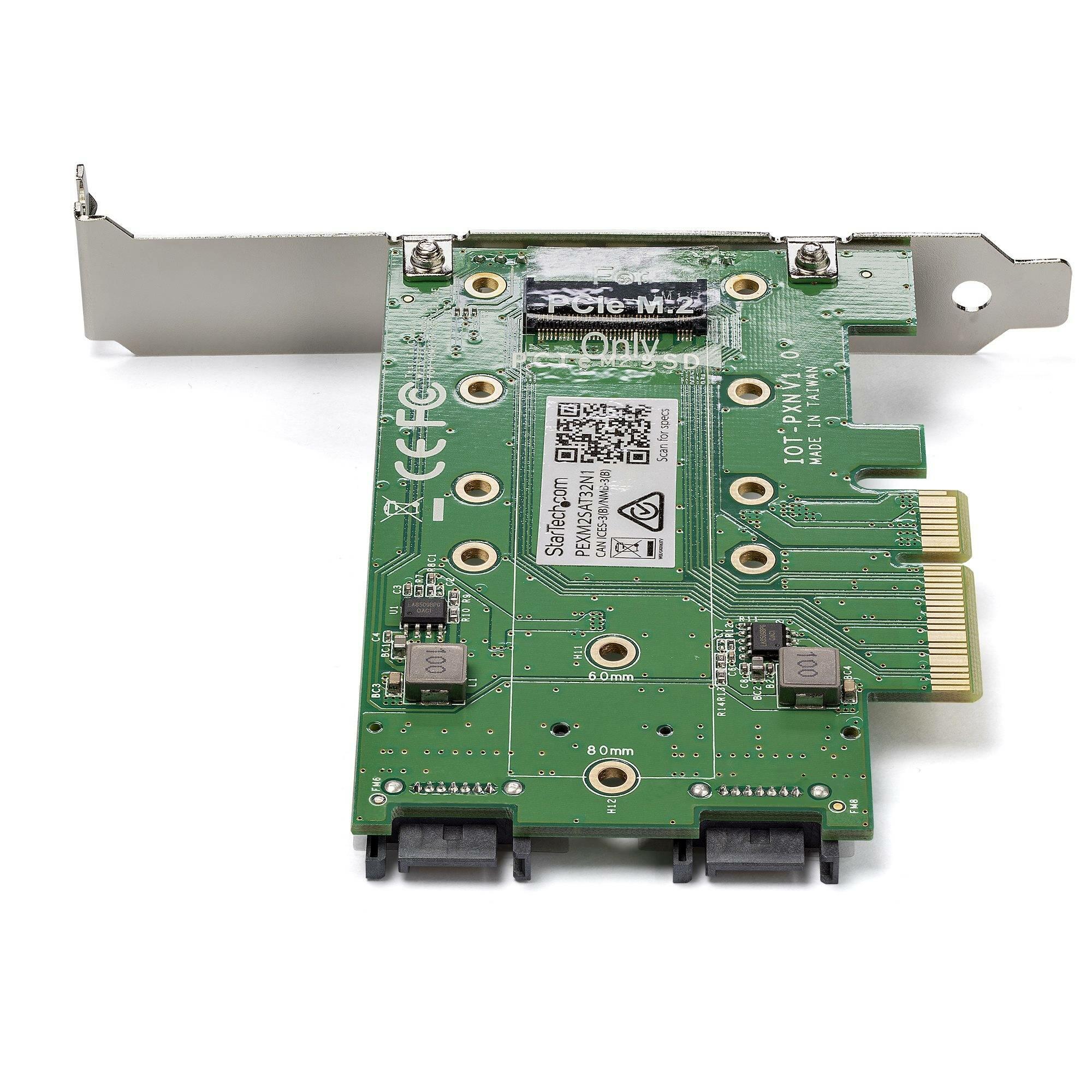

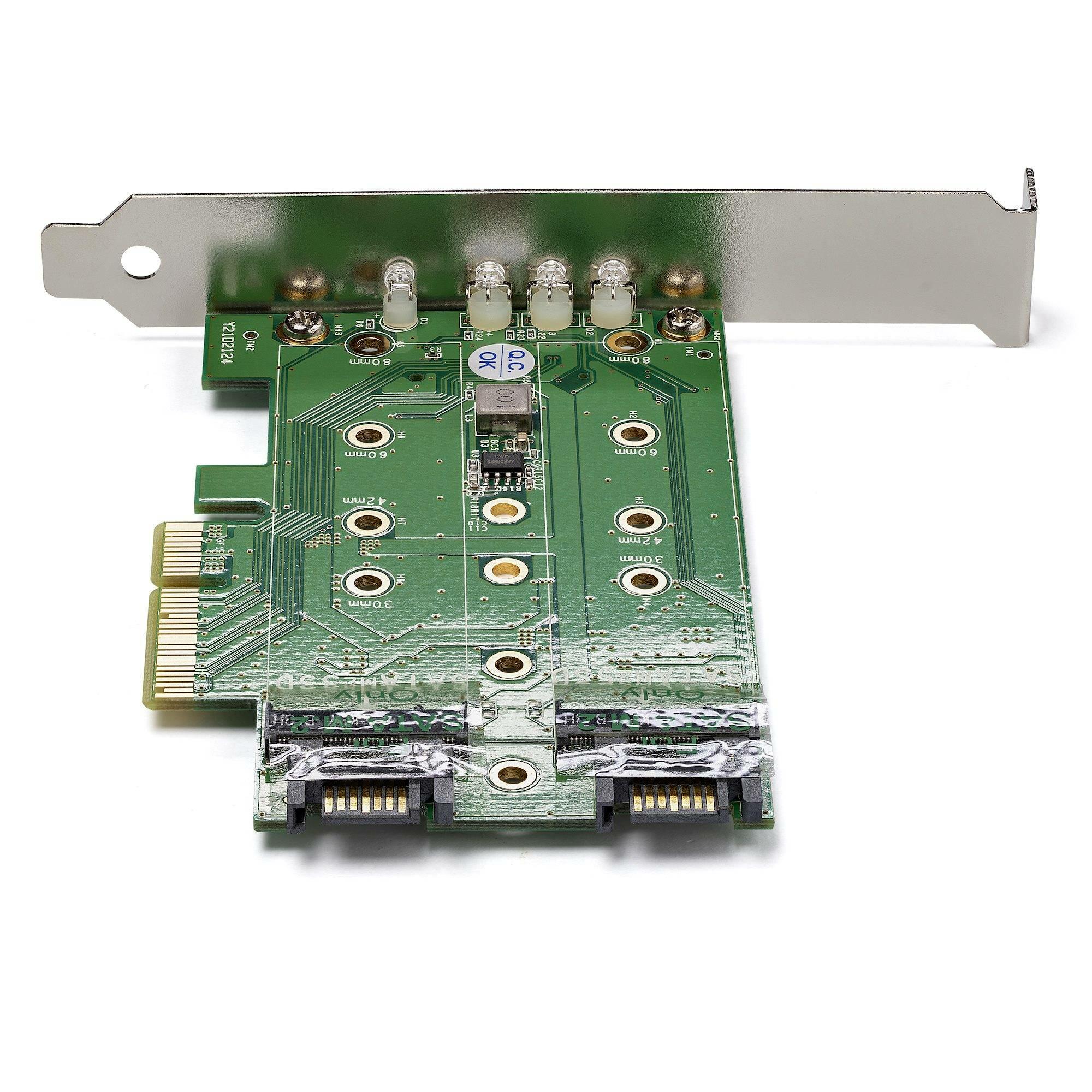

1 - Connector Type(s): PCI Express x4
2 - Internal Ports: M.2 (SATA, B-Key, NGFF)
1 - Internal Ports: M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
2 - Internal Ports: SATA (7 pin, Data)

Environmental
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Humidity: 20%~80% RH (Non-condensing)

Hardware
Ports: 3
Interface: M.2 SATA
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket incl.)
Interface: SATA
Port Style: Integrated on Card
Interface: M.2 PCIe
Industry Standards: Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps), PCI Express 3.0

Indicators

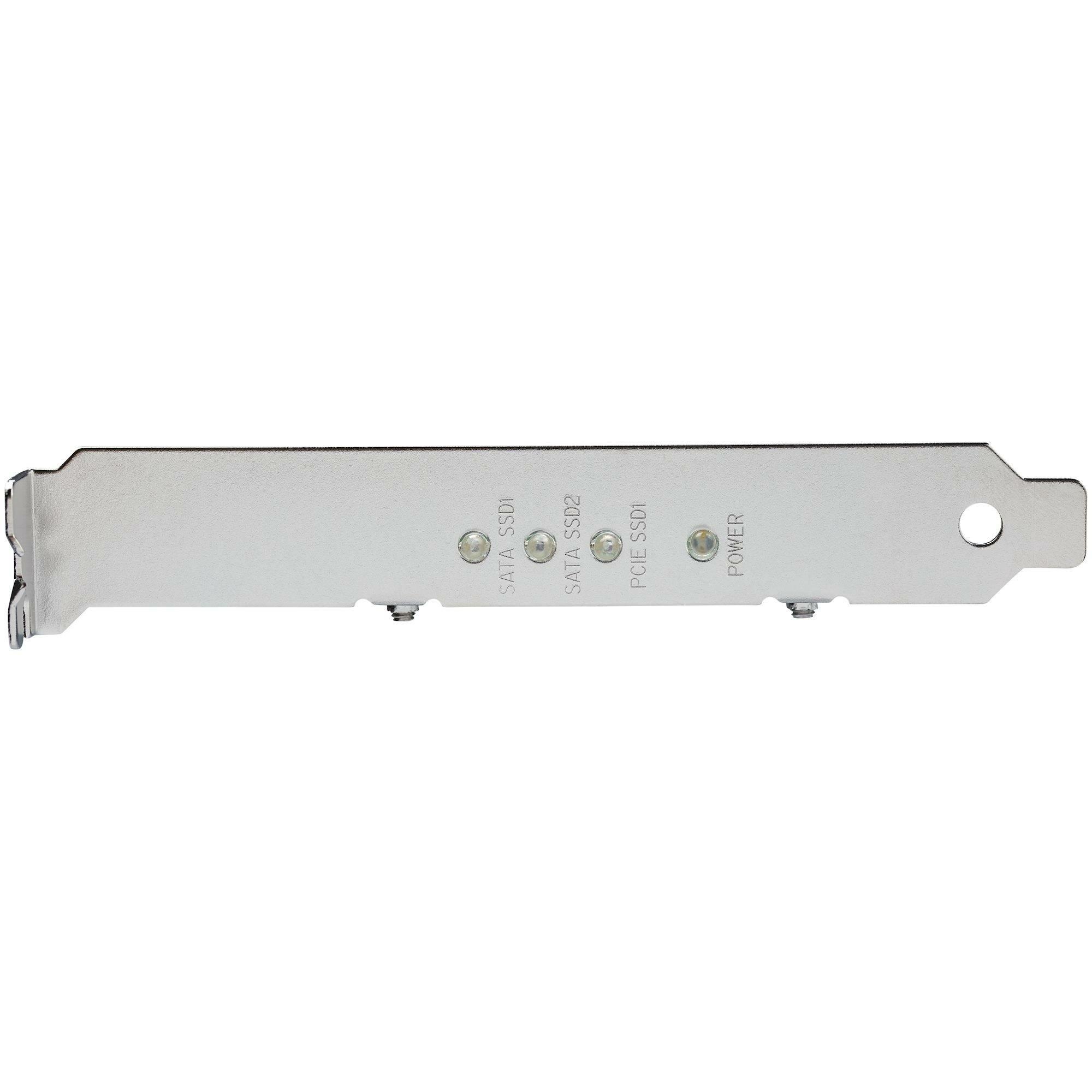

3 - LED Indicators: M.2 drive status/activity
1 - LED Indicators: Power

Packaging Information
Package Height: 32 mm [1,3 in]
Package Length: 13 cm [5,1 in]
Shipping (Package) Weight: 127 g [4,5 oz]
Package Width: 16,2 cm [6,4 in]

Performance
Type and Rate: SATA III (6 Gbps)
Port Multiplier: No
Bootable: Yes
Hardware Raid Supported: No
ATAPI Support: Yes
MTBF: 50,000 Hours

Physical Characteristics
Weight of Product: 65 g [2,3 oz]
Material: Steel
Product Length: 12 cm [4,7 in]
Product Width: 20 mm [0,8 in]
Product Height: 12 cm [4,7 in]

Software
OS Compatibility: OS Independent; No additional drivers or software required

Note: When installed in a compatible operating system, the card is natively supported and doesn’t require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).

Special Notes / Requirements
System and Cable Requirements
A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot
One or two SATA host ports on the host computer (for example, the SATA controller card, or the motherboard SATA ports inside of your computer)
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
System and Cable Requirements
An operating system that natively supports PCIe SSDs (NVMe), such as:
- Windows® 8 and later
- Mac OS 10.10.3 and later
