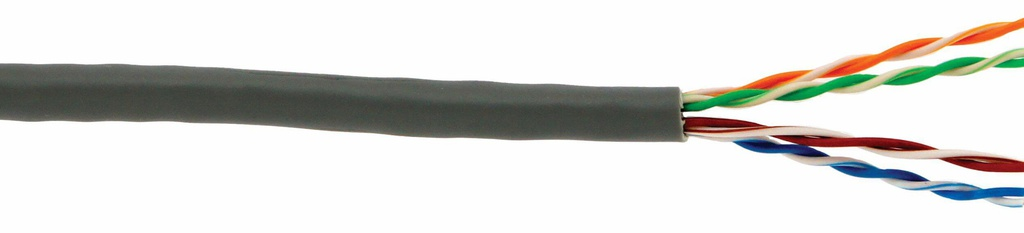

DLINK CABLE CAT6 UTP 23 AWG SOLID, 305M ROLL, GREY NCB-C6UGRYR-305 by DLINK

Code CBL-DL-C6UGRYR
€0.00
€167.50
RRP €169.96
DLINK CABLE CAT6 UTP 23 AWG SOLID, 305M ROLL, GREY NCB-C6UGRYR-305Click the image to enlarge
Code CBL-DL-C6UGRYR
€0.00
€167.50
Price in shop: €169.96
Save
Earn 0 reward points with this product.
  • Description

    4 Pairs Unshielded Twisted Pair (UTP) Cable
    Conductor Metal: Solid Bare Copper with 23 AWG
    Color Code: Gray
    Jacket Material: PVC UL94V-0
    PE Central Cross separator

    Mutual Capacitance: 5.6nF/100m nominal
    Characteristic Impedance: 100Ω±15%
    Nominal Velocity of Propagation: 69%
    Conductor Resistance: < 9.38Ω/100m
    Mutual Capacitance: < 5.6nF/100m
    Resistance Unbalance: 5% Max
    Capacitance Unbalance: 330pF/100m
    Delay Skew: < 45nS
    Conductor Diameter : 0.560mm Nominal
    Insulation Diameter: 0.97mm Nominal
    Insulation Material: HD-PE
    Cable Diameter: 6.0mm
