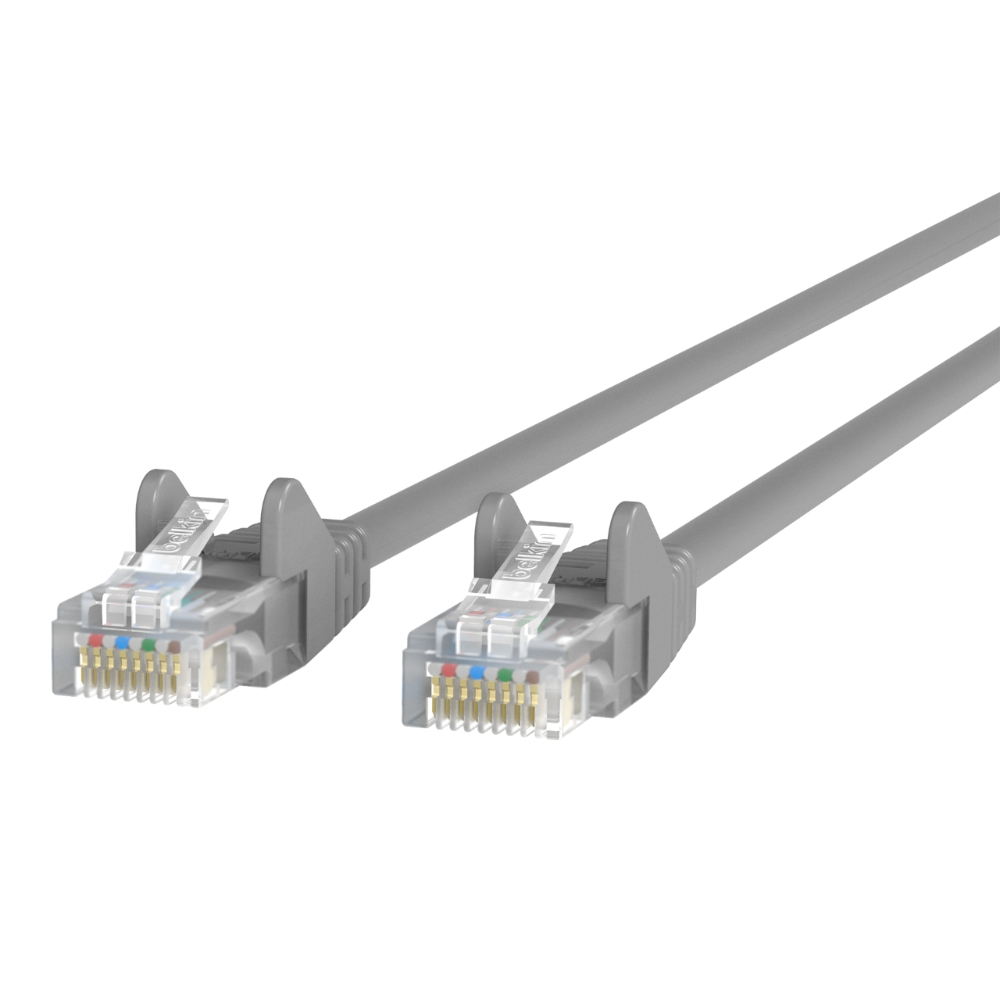

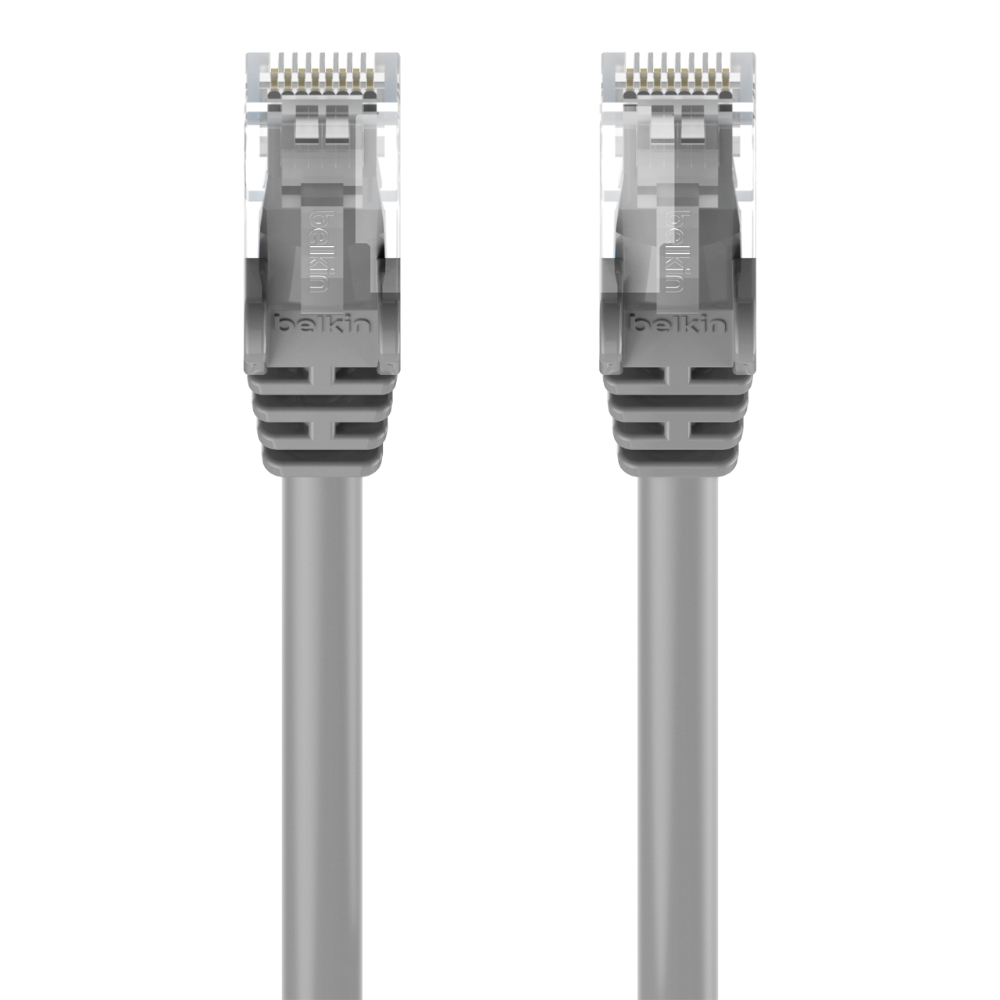

BELKIN A3L980cp01M CBL CAT6 1 M GREY

Cable Type Cat 6
Characteristic Impedence 100±15Ω @ 1 ~ 550MHz
Conductor Construction Bare Stranded Copper
Conductor Resistance 93.8Ω/km/20°C max
Conductor Size 24AWG x 4pairs
Connectors RJ45
Dielectric Strength AC 1.5kV
Flame Retardant Test CM
Insulation Material HDPE
Jacket Diameter 5.9±0.15mm
Jacket Material PVC
Mutual Capacitance 56pF/m max
Propagation Delay 536nS/100m max @ 550MHz
Spark Test 2.5kV
Standards Compliance ISO/IEC 11801; TIA/EIA-568-B.2-1
Structural Return Loss 8.6dB min at 550MHz
Connector 50 micron gold-plated connector
Cable Characteristic Unshielded twisted pair (UTP)
Cable Type Cat 6
Characteristic Impedence 100±15Ω @ 1 ~ 550MHz
Conductor Construction Bare Stranded Copper
Conductor Resistance 93.8Ω/km/20°C max
Conductor Size 24AWG x 4pairs
Connector on First End 1 x RJ-45 - male
Connector on Second End 1 x RJ-45 - male
Dielectric Strength AC 1.5kV
Flame Retardant Test CM
Insulation Material HDPE
Jacket Diameter 5.9±0.15mm
Jacket Material PVC
Mutual Capacitance 56pF/m max
Propagation Delay 536nS/100m max @ 550MHz
Spark Test 2.5kV
Standards Compliance ISO/IEC 11801; TIA/EIA-568-B.2-1
Structural Return Loss 8.6dB min at 550MHz
Adapters Cables Included 1x cable included
